This is a Smart protection board specially designed for battery packs of.It can be applied to lithium batteries with different chemical properties, such as lithium ion, Li-polymer. Lithium iron phosphate, etc. The protection board has strong loading capacity and the maximum continuous discharge current can reach 80A.
- 7s 10S 11S 12s 13S 14S 15S 16S 17S series cell protection for Lithium Battery pack (15*4.2=63V 12*3.65=43.8V Lifepo4 battery pack example ),BMS can automatically detect Battery series with different connection methods
- Various protection functions for charging and discharging ( over-charge , over-discharge ,high or Low temperature protection ,over-current protection , short circuit protection etc ) with double layers protection hardware and software protection .
- Precise SOC calculation with SOC function of automatic learning
- Automatically charge battery function or static balance function for the battery system
- With Built ion Bluetooth Module
- With TVS upgrade to prevent Mosfet shock in certain degree to provide more reliable current for your device
- with ON /OFF switch function ( we can add it if client needs )
- With preserved RS485 communication port ,ISDN connection port
- With 3 road external temperature detection and one internal Temperature detection .

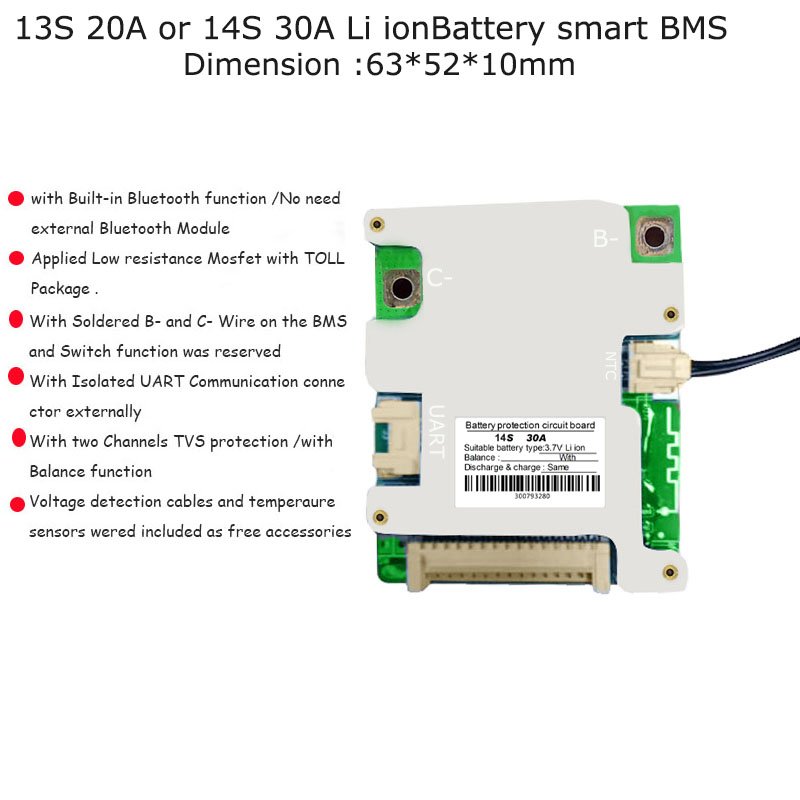

- Support 7s-14s
- Common port, 30a current maximum, 90a peak current.
- Size: 63mm*52mm*12mm
Model 2 :
- Support 10s-17s
- Common port, 20a current maximum, 60a current peak.
- Size: 102mm*65mm*10mm
